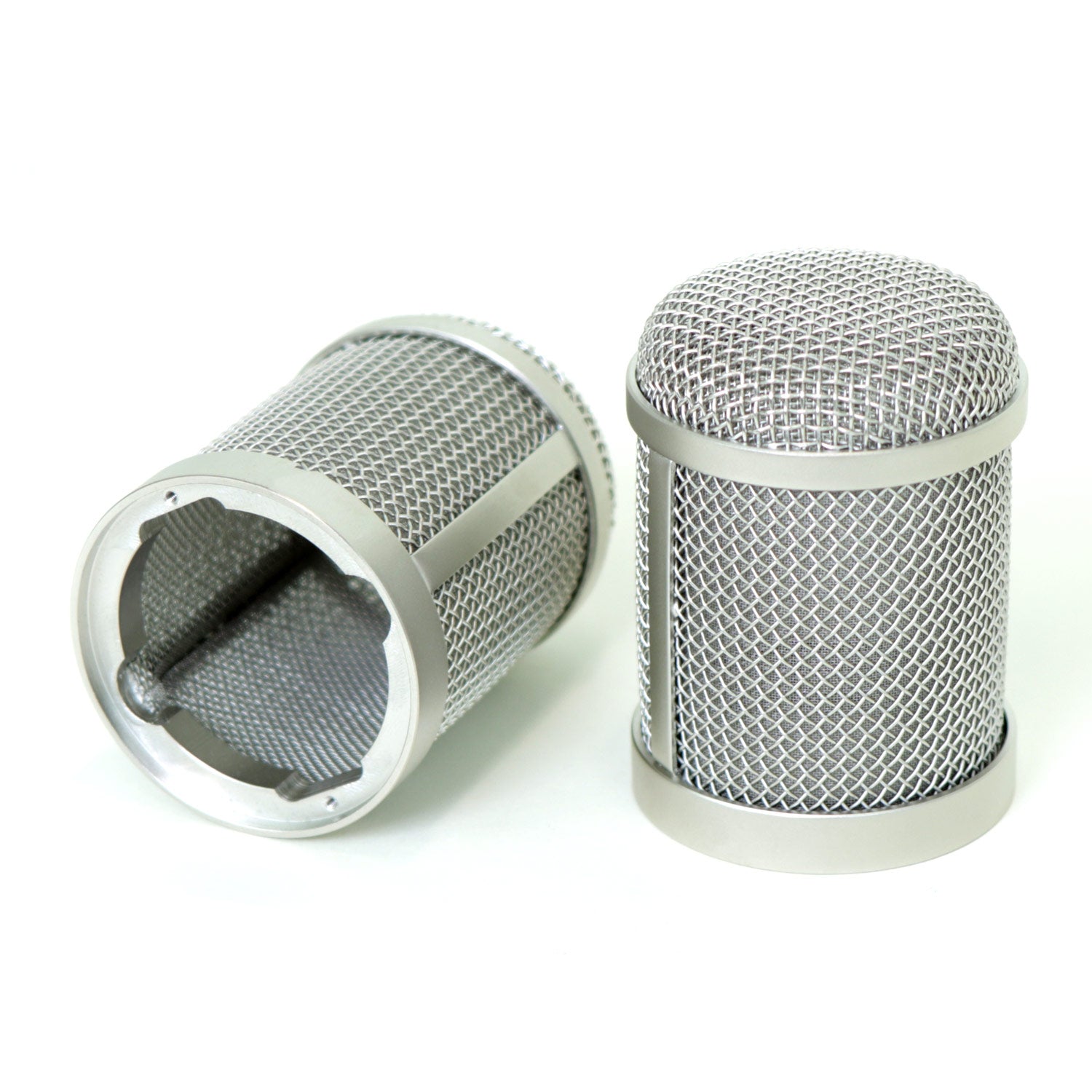

60mm Microphone Grille
$ 9.00
Mic grille specifications
- Outside diameter: ~60mm
- Height: 80mm
- Mesh construction: 3 layer
- mounting hole spacing: ~53mm
- Finish: satin nickel plated
Compatibility
This grille is not easily compatible with any known microphone.
This grille is the correct diameter for several popular MXL models: the 920, 770, and 990. However, the tapped mounting holes in this grille's frame are too far apart to fit those models. Installation onto the 770, 990, or 920 would probably require making a thin metal adapter plate to sit between the mic chassis and the grille.
Installation into microphones whose grille screws are not also the PCB mounting screws would likely be best done by drilling and tapping new holes into the chassis and grille. This approach will not work with the 990 and 770, whose PCB screws must match the location of tapped holes in the grille.
Sold As-Is
These grilles are discounted below our cost of production, and are sold as-is. We cannot accept returns based on incompatibility, as we've already noted that the grilles are not known to be compatible with common DIY donor mics.
